MartinLogan Summit™ X




Floorstanding Front


                doprava zdarma









                      MartinLogan Summit™ X































                      Číslo produktu:

                            20400






                        Woofer Cabinet:










                        High Gloss Cabinet:










                        Binding Posts:

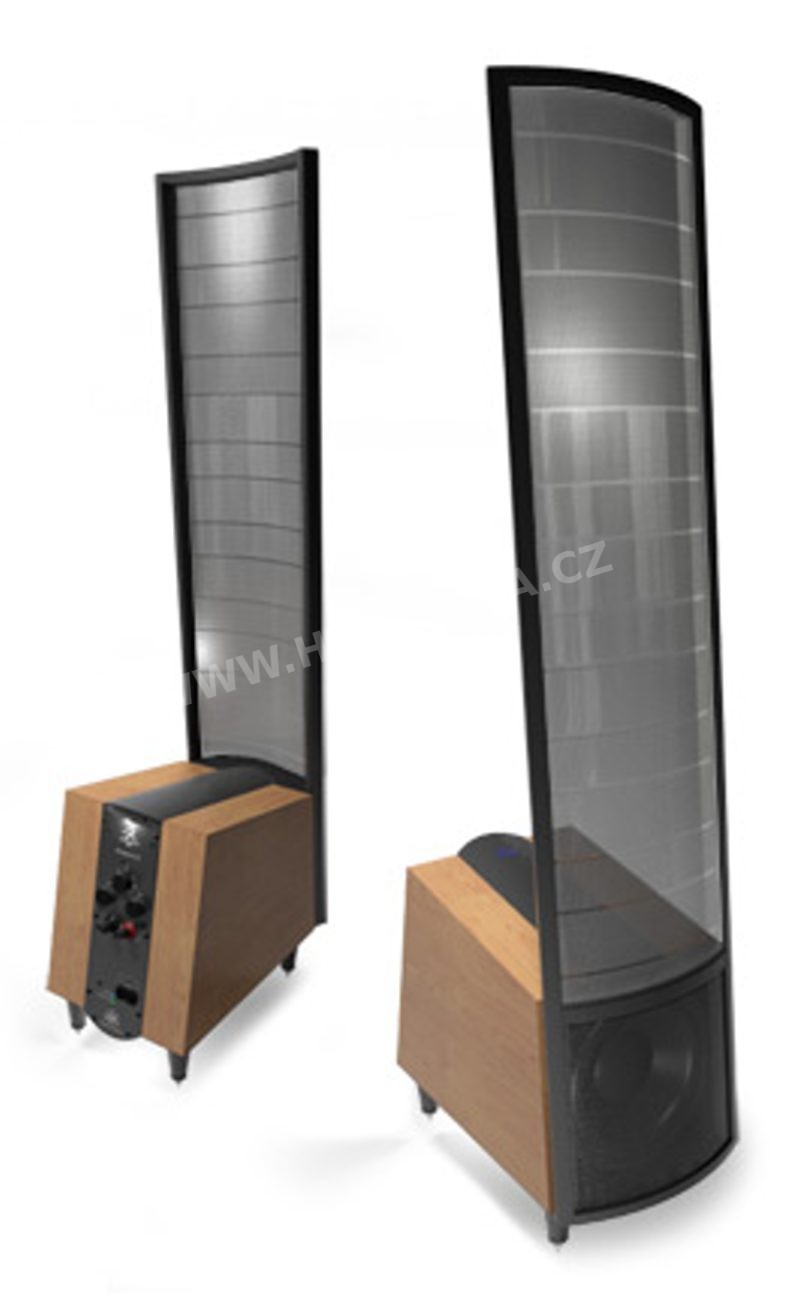

Summit X




Unparalleled Sound Inspired By the CLX


Amazing mid-range clarity and openness inspired by the CLX loudspeaker is only half of the story. Summit X is the first hybrid electrostatic speaker to bring controlled dispersion to low frequencies. Using a precision Vojtko Voiced™ crossover network to apply variable phasing near the crossover point, Summit X's Controlled Dispersion PoweredForce™ technology provides seamless blending with the XStat™ transducer. Four innovative modular feet adjust vertical dispersion over a 12 degree range, while the 25 and 50Hz level controls fine-tune woofer output to provide smooth, clean, and powerful bass throughout the listening environment.


















Frequency Response




24–23,000 Hz ±3dB








Horizontal Dispersion




30°








Vertical Dispersion




44" (112cm) line source








High Frequency Transducer




XStat™ CLS™ electrostatic transducer








» Panel Dimensions




44" × 11.3" (111.8 × 28.7cm)








» Radiating Area




497 in2 (3,209 cm2)








Low Frequency Transducer




Two 10" (25.4cm) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format








Amplifier




Woofer: 2 × 200 watts/channel (4 ohms)








Sensitivity




91 dB/2.83 volts/meter








Impedance




4 Ohms, 0.8 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.








Recommended Amplifier Power




20‒600 watts per channel








Crossover Frequency




270Hz








Components




Custom-wound audio transformer, air core coils, polypropylene capacitors








Audio Controls




±10dB at 25Hz
±10dB at 50Hz








Lighting




Control knob to adjust illuminated blue hood logo, back control panel lighting & ground effects lighting








Inputs




Custom 5-way binding posts








Power Draw




Standby: <1W/channel
Max: 350W/channel








Weight




75 lbs. (34 kg)








Dimensions




60.9" × 12.7" × 21.3"
(154.8cm × 32.2cm × 54cm)









Specifications are subject to change without notice.
